Description

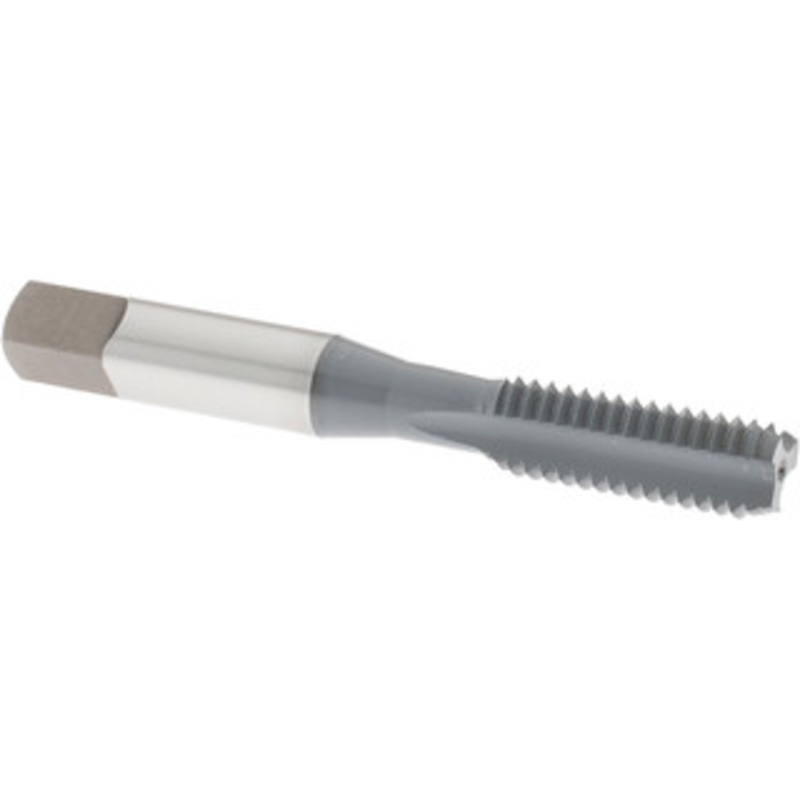

OSG Straight Flute Tap: 3/8-16 UNC, 3 Flutes, Bottoming, 3B Class of Fit, High Speed Steel 1-1/4″ Thread Length, 2-15/16″ OAL, Right Hand Thread, H3, Series 101

Manufacturer Part #: 1171402

S/N: 65292187

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Tap Type Standard Thread Size (Inch) 3/8-16 Thread Standard UNC Chamfer Bottoming Material High-Speed Steel Thread Direction Right Hand Coolant Through No Class Of Fit 3B Thread Limit H3 Number Of Flutes 3 Thread Length (Inch) 1-1/4 Overall Length (Inch) 2-15/16 Application Tapping Material Application Aluminum, Cast Aluminum, Cast Iron, High-Carbon Steel, Low-Carbon Steel, Medium-Carbon Steel Series 103
